WKN

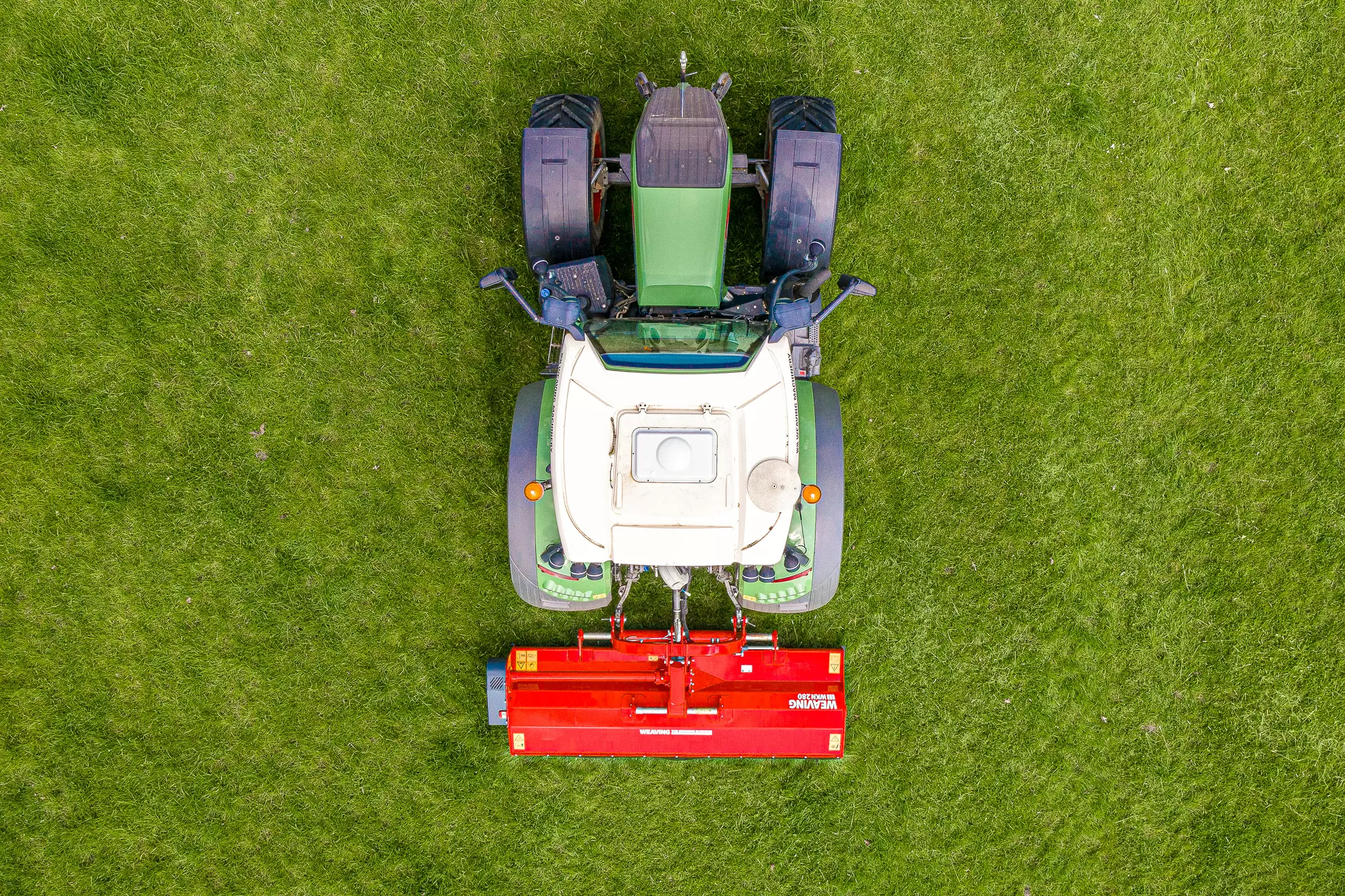

The Weaving flail mowers are designed with a unique cutting
action that throws material over the top of the roller, keeping the cutting
rotor clean & leaving a cleaner cut with an outstanding finish.
All new Weaving flail mowers are sold with 2 year’s warranty.
Weaving Machinery stock, a full complement of spare parts for the range,
available on next day delivery for most UK addresses.
The Weaving WKN is suitable for most jobs from cutting
pasture and margins to tough medium sized brash. The hood is manufactured from
FE510 high tensile and high impact steel making it suitable for the most
challenging of conditions.
Standard Specification
Sharpened Hammers, Hydraulic Side Shift, Skids, Spiral
Rotor, 9” Rear Roller, 5 Belt Drive, Over-Run Gearbox, Stationary Knife,
Discharge Over the Roller, Front Chain Guard, Rear Rubber Guard.
Key Features
Unique Cutting Action
The Weaving flail mowers are designed with a unique cutting action that throws material over the top of the roller, keeping the cutting rotor clean & leaving a cleaner cut with an outstanding finish.
Attractive Striped Finish
The large 200mm diameter roller not only gives accurate cutting height control but leaves an attractive striped finish. The roller is fixed by heavy duty double bearings located inside the body of the mower to provide protection when using in heavy work.
Serrated Cutting Knife
An internal fixed counter knife with serrated teeth on the underside of the flail hood to ensure that the discharge material is mulched into smaller pieces.
Heavy Duty
Heavy duty 540 RPM gearbox, FE510 high tensile and high impact steel hood making it suitable for the most challenging of conditions. Featuring a robust rotor complete with 5” hammer flails in a spiral formation to reduce horsepower requirement and fuel consumption. The rotor is driven by an over-run gearbox through 5 ‘V’ belts with an auto tensioner providing extra protection.
Product Videos
Pricing
Product Title Prices
Finance Calculator
To calculate your finance quote please click on your preferred model and optional specification from the list above. Then below, please select your preferred payment frequency and term length. Please note these are indicative figures and do not include any applicable delivery charges. Bespoke finance quotes are available to suit your budget, please ask our sales team for more information.
Technical Specification
| Model | WKN 260 | WKN 280 |
|---|---|---|
| Working Width (m/ft) | 2.60 / 8'6" | 2.80 / 9'2" |
| Min. power demand (HP) | 70 | 80 |
| Weight (kg/lbs) | 990/ 2183 | 1080 / 2381 |
| No. of belts | 5 | 5 |
