Apollo
.opt.webp)
3 - 5M
130 HP+
0 - 25CM
Apollo

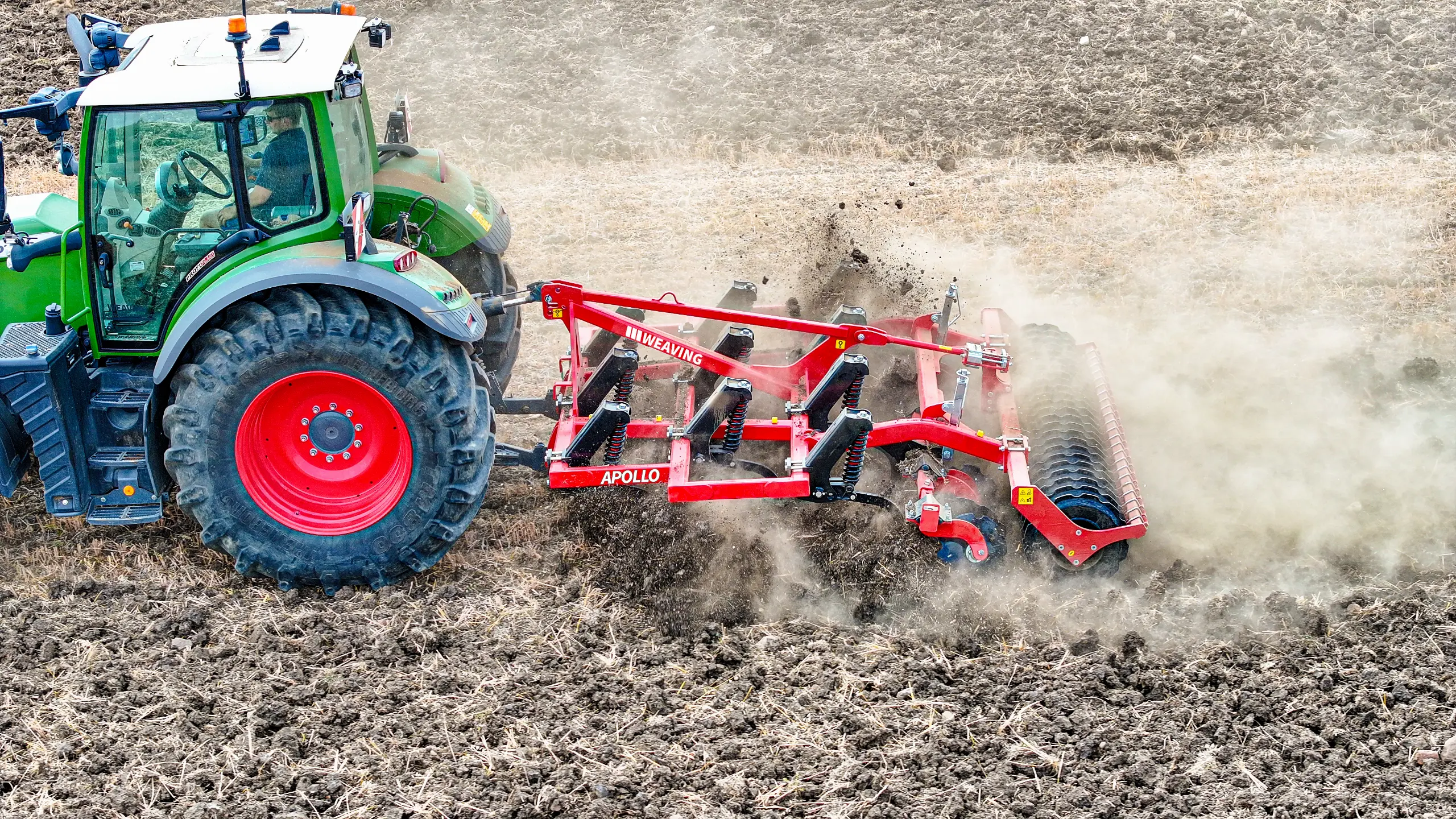

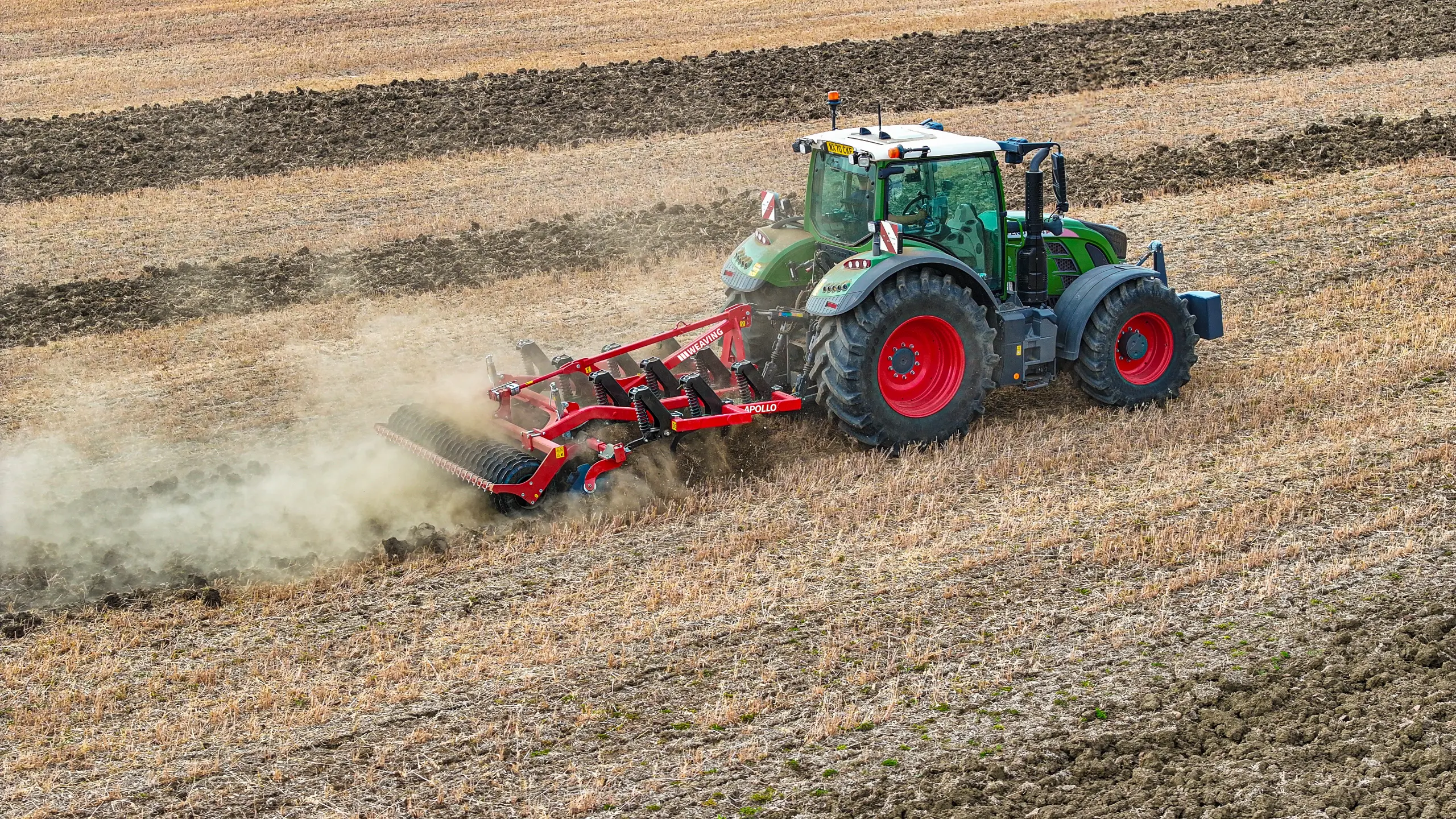

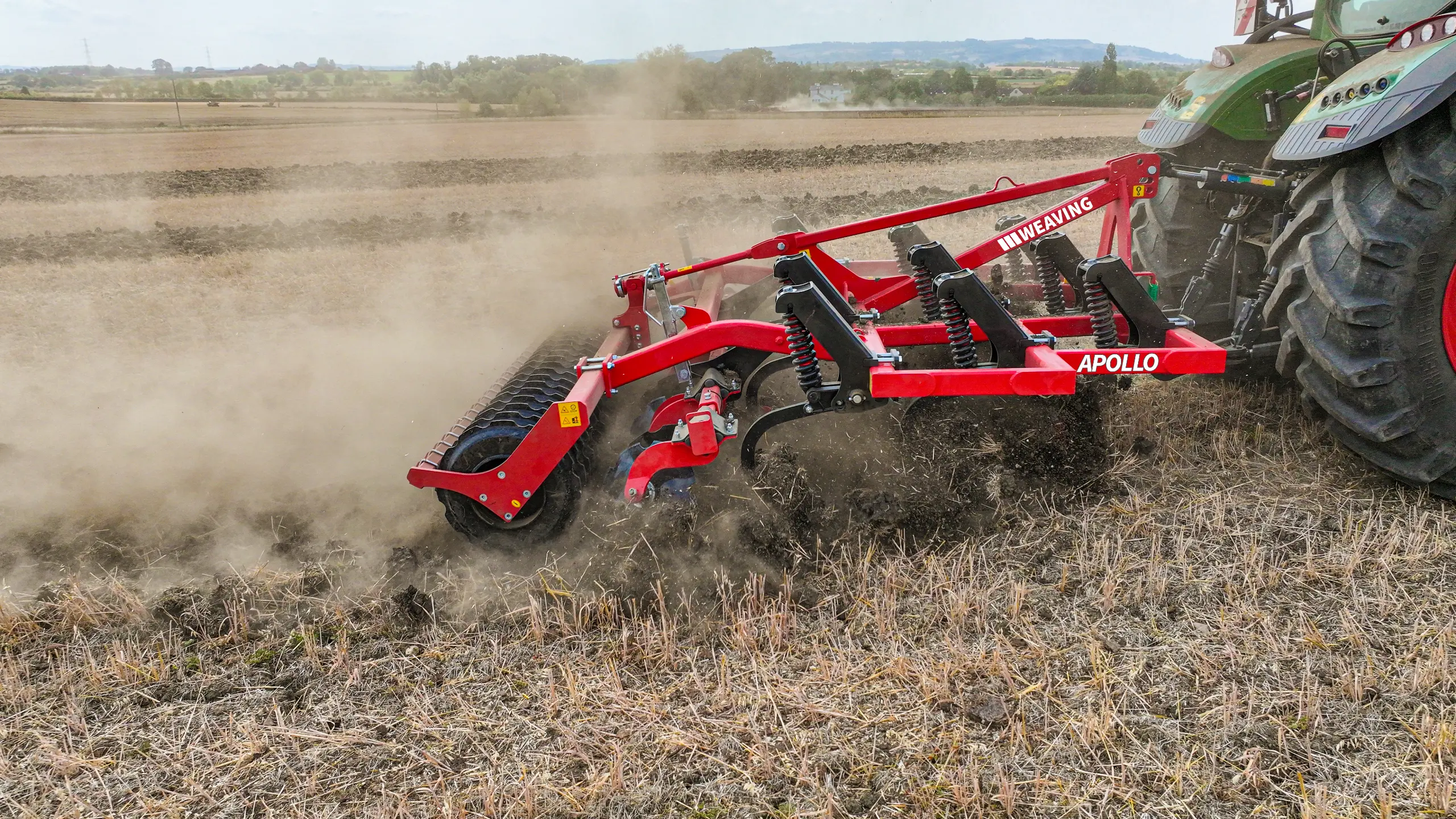

The Apollo is a versatile tined cultivator capable of working to depths of around 25cm. The auto-reset legs provide soil loosening and levelling, leaving an even and consolidated seedbed. The 3 rows of legs are followed by levelling discs before a large diameter disc roller. The result is a cultivator that produces a high quality result and delivers a reliable performance that modern farming practices demand.
Standard Specification
3 rows of auto-reset legs with replaceable points, wings and shins. Manual adjustment levelling discs. Full width 600mm disc roller. 25cm maximum working depth with manual depth control adjustment using aluminium spacers. CAT III linkage, LED road lights. Hydraulic transport safety lock on folding models.
Includes 1 year warranty
Key Features
Frame
Heavy-duty reinforced chassis engineered for the toughest conditions. With a frame height of approx. 75 cm, it delivers reliable deep cultivation, excellent ground clearance, and consistent working depth, while withstanding impacts to minimise downtime.
Legs
Tines designed with a 25° cutting angle and 12 mm blade thickness for optimum soil penetration. Each tine is equipped with a heavy-duty spring safety system, providing auto-reset protection with a release force of approx. 800 kg.
Depth Adjustment
Adjustable working depth from 5–30 cm, set via aluminium spacer clips (5, 10, 20 mm) and roller height adjustment, either mechanical or hydraulic. Designed for flexibility—shallow tillage or deep soil breaking as required—with quick, simple adjustments to minimise downtime.
Levelling Discs
46cm scalloped levelling discs, 4mm thick and spaced for optimal soil flow. Mounted on forged steel hubs with rubber suspended, maintenance free bearings. The discs deliver excellent soil refinement after the tines, creating a level and even seedbed.
Roller
The heavy-duty 600 mm ⌀ disc roller with scraper bar ensures precise depth control and reliable performance. Its sharp discs cut through soil and break down clods effortlessly, leaving a smooth, fine seedbed that improves crop establishment and reduces the need for extra passes.
Pricing
Product Title Prices
Finance Calculator
To calculate your finance quote please click on your preferred model and optional specification from the list above. Then below, please select your preferred payment frequency and term length. Please note these are indicative figures and do not include any applicable delivery charges. Bespoke finance quotes are available to suit your budget, please ask our sales team for more information.
Technical Specification
| Model | Apollo 3000M | Apollo 4000M | Apollo 5000M |
|---|---|---|---|
| Working Width (m) | 3 | 4 | 5 |
| Transport Width (m) | 3 | 3 | 3 |
| Number of Legs | 10 | 13 | 16 |
| Min. Power Requirement (hp) | 130 | 180 | 240 |
| Working Depth (mm) | 250 | 250 | 250 |
| LED Road Lights | Standard | Standard | Standard |
| Frame Type | Rigid | Folding | Folding |
| Weight (kg) | 2400 | 3640 | 4600 |
